Prolight XL 105mm Recessed modular LED LIGHT Featured Image
  • Prolight XL 105mm Recessed modular LED LIGHT
  • Prolight XL 105mm Recessed modular LED LIGHT

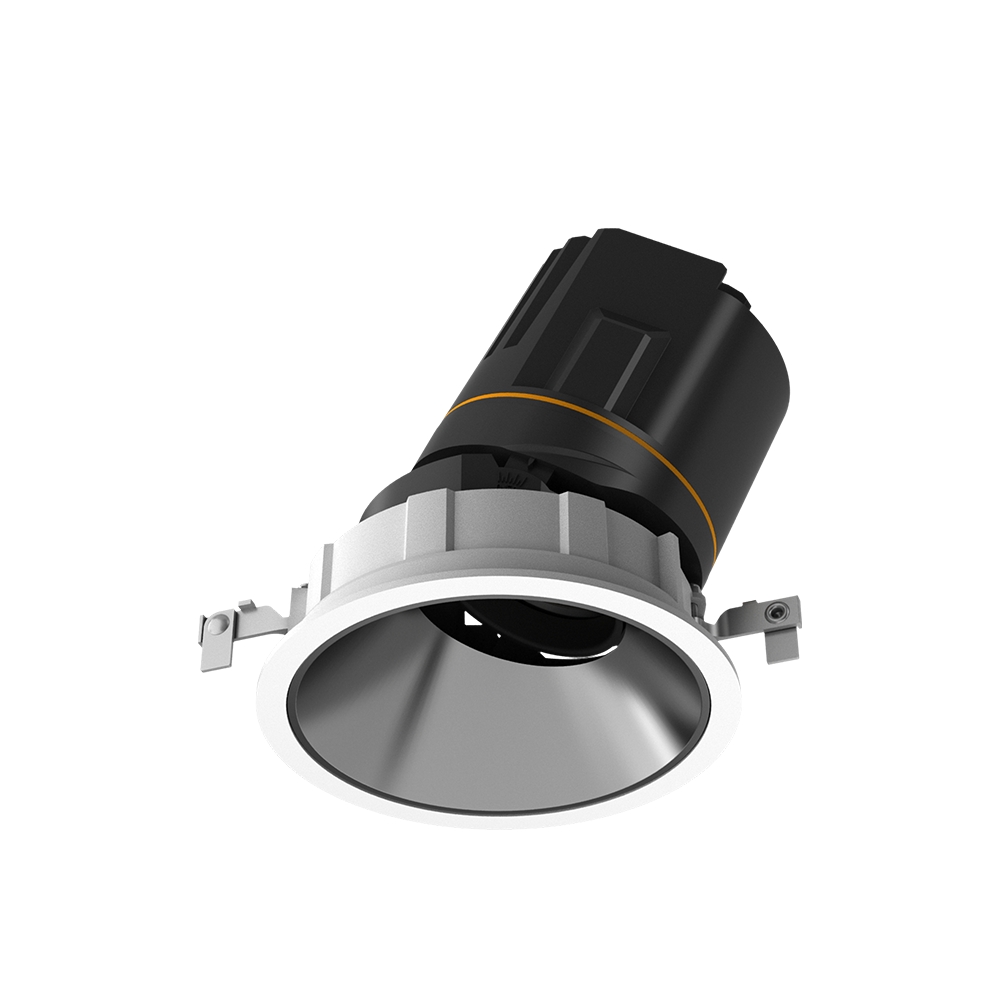

Prolight XL 105mm Recessed modular LED LIGHT

LED downlight water proof

PROLIGHT XL is the big size in PROLIGHT family (105mm cut out), available in 20W and Max.24W, with white or black frame and chrome reflector, anti glare led downlight. For applications of high ceilings, available in IP20 and IP65 grade. Available in adjustable and non-adjustable versions. It is optional in CCT 2700~6000K dimming brightness and colors with wire or wireless control.


  • 1. 24w Max, Cut-out φ105mm
  • 2. UGR below 16
  • 3. IP20 and IP65 optional
  • 4. Beam angle narrow and flood 15/24/36/50
  • 5. TRIAC,0-10V,DALI,Tunnable white dimming solution,compatible with Casambi,Lutron

    • Product Detail

    Product Tags

    MOUNTING
    Mounting location Ceiling downlight
    Mounting Type Recessed with cut out hole 105mm
    ELECTRICAL
    Input Voltage AC220-240V/AC100-130V
    Frequency 50Hz/60Hz
    DRIVER
    Type Outside
    Driver brand PHILIPS/LIFUD/TRIDONIC/LTECH/MOONS' (optional)
    Power Factor at least 0.9
    Dimming Option ON-OFF/TRIAC/0-10V/DALI/CCT DIM
    LED
    Chips brand Luminus LED
    Power 20W (24W Max.)
    Color Temperature 2700K/3000K/4000K/5000K/27000~5700K
    CRI Ra92
    LAMP
    Material Die-casting aluminum and plastic
    Color Sandy white / Sandy black frame, Chrome tube
    Beam Angle 15°/24°/36°/50°
    Unified glare rating(UGR) less than 16
    Luminaire lumen efficiency 70lm/w
    Ingress Protection IP20/IP65
    Warranty 3-year-guarantee
    DIMMENSION DIAGRAM
    754db791
    Prolight XL 105mm Recessed
    prolight (2)
    prolight (6)
    推广图IP65
    Adjustable IP65 Round LED downlights (1)

    1. Q: Is it complete aluminum?

    A: The most material is die cast aluminum. The heat sink and middle part and the frame kits are die cast aluminum, while the reflector is plastic.

    2. Q: What is your regular color?

    A: The size 105mm PROLIGHT 20W/25W downlight we offer regular white frame kit to recessed mounting and chrome color reflector for optics. And the heat sink is in grey.

    3. Q: Can I change the beam angle after installation?

    A: When the installation finished, you have to exchange the heat sink to change the beam angle. It is modular design, so you dont have to change the complete lamp.

    4. Q: Do you have smaller sizes?

    A: Yes, we have smaller diamater 75mm cut out and 55mm cut out in this family.
