Prolight wall washer version round and square frame and minimal

led wall washer spotlight minimal led spotlight round and square

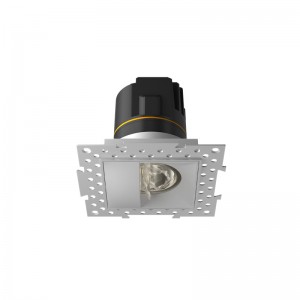

Engineered to perfection, the PROLIGHT WALLWASHER combines a slightly curved cover with a lens, resulting in an evenly lit wall, from floor to ceiling. Thanks to the design harmony between LED and lens, PROLIGHT wall washer 12W can be kept very compact and does not attract any attention to the luminaire. The cover design reduces the angle of the mechanical cut-off, resulting in a minimum of glare and a maximum of visual comfort.


  • 1. Specialist patented optical system for effective vertical distribution
  • 2. MacAdam SDCM<3 LED CHIPS
  • 3. IP54 on the visible body of the mount after installation
  • 4. Available with Frame and Minimal application solutions
  • 5. Square and Round Wall Washer versions
  • Product Detail

    Product Tags

    MOUNTING
    Mounting location Indoor Ceiling
    Mounting Type trim recessed or trimless recessed
    ELECTRICAL
    Output Voltage DC33-38V
    Output Current 300mA
    DRIVER
    Type External
    Driver brand PHILIPS/LIFUD/LTECH/AC-TEC (ON REQUEST)
    Power Factor PF0.5 as usual
    Dimming Option TRIAC/0-10V/DALI
    LED
    Chips brand Luminus
    Power 12w
    Color Temperature 2700K/3000K/4000K/5000K/27000-5700K
    CRI Ra>90
    LAMP
    Material Made of aluminum
    Color Sandy white
    Beam Angle wall washer
    Unified glare rating(UGR) UGR<13
    Luminaire lumen as final 840lm
    Ingress Protection IP54
    Warranty 5 years
    1
    Prolight round 尺寸图
    prolight (2)
    prolight (6)
    prolight (7)
    Prolight Wallwasher 75mm Recessed

    1. Q: Do you have distance suggestion for installation?

    A: The advised distance from the wall to the lamp should be 80~100cm, and the wall height should be 250~350cm, the each lamp should be 80~100cm distance. This is the advise, and we can offer IES for dialux to check the light effect for you.

    2. Q: Do you have any certification?

    A: We have TUV (CE) for LED recessed luminaires.

    3. Q: Can you offer FOB prices?

    A: Yes, we can offer FOB also EXW, CIF on request.

    4. Q: Can you make our company own color box packing?

    A: Yes, of course.
