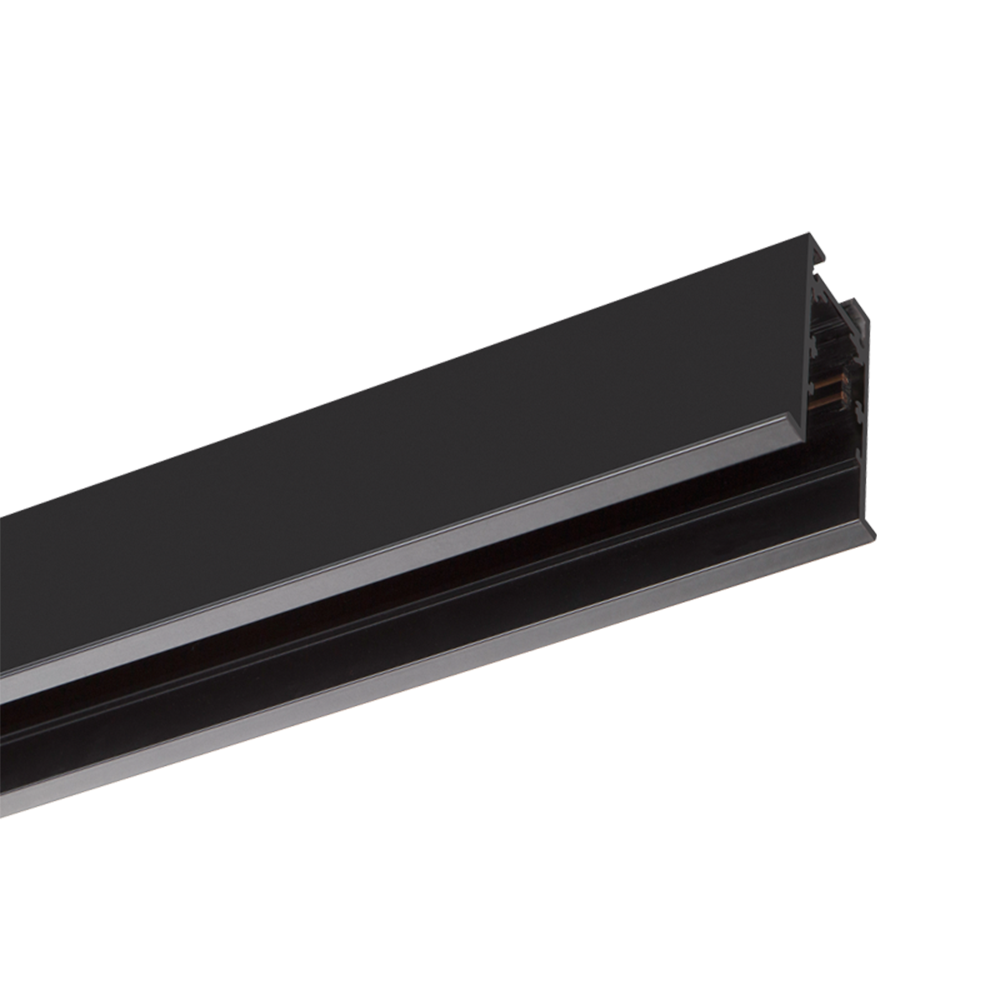

Mpower Track Rail DC48V Track System

Magnetic LED track system Accessories

LED track system 48V we called Mpower, easy to install in the track. Patented rotate mechanical fixation adaptor guarantees that the luminaires will not fall out. Power source in the kit. 48V connection. Low voltage ensures complete electrical safety.
You will need an electrical transformer and a power feeder in the installation. The power feeder brings the electricity and the electrical transformer, transforms 220V/110V into 48 vlotage, so you can introduce the led modules safety. Mpower connects by magnetic force and no need of tools allowing our most versatile lighting since you can add and remove led modules until the desired atmosphere is achieved.


  • 1. DC48V magnetic track rail 4 wires

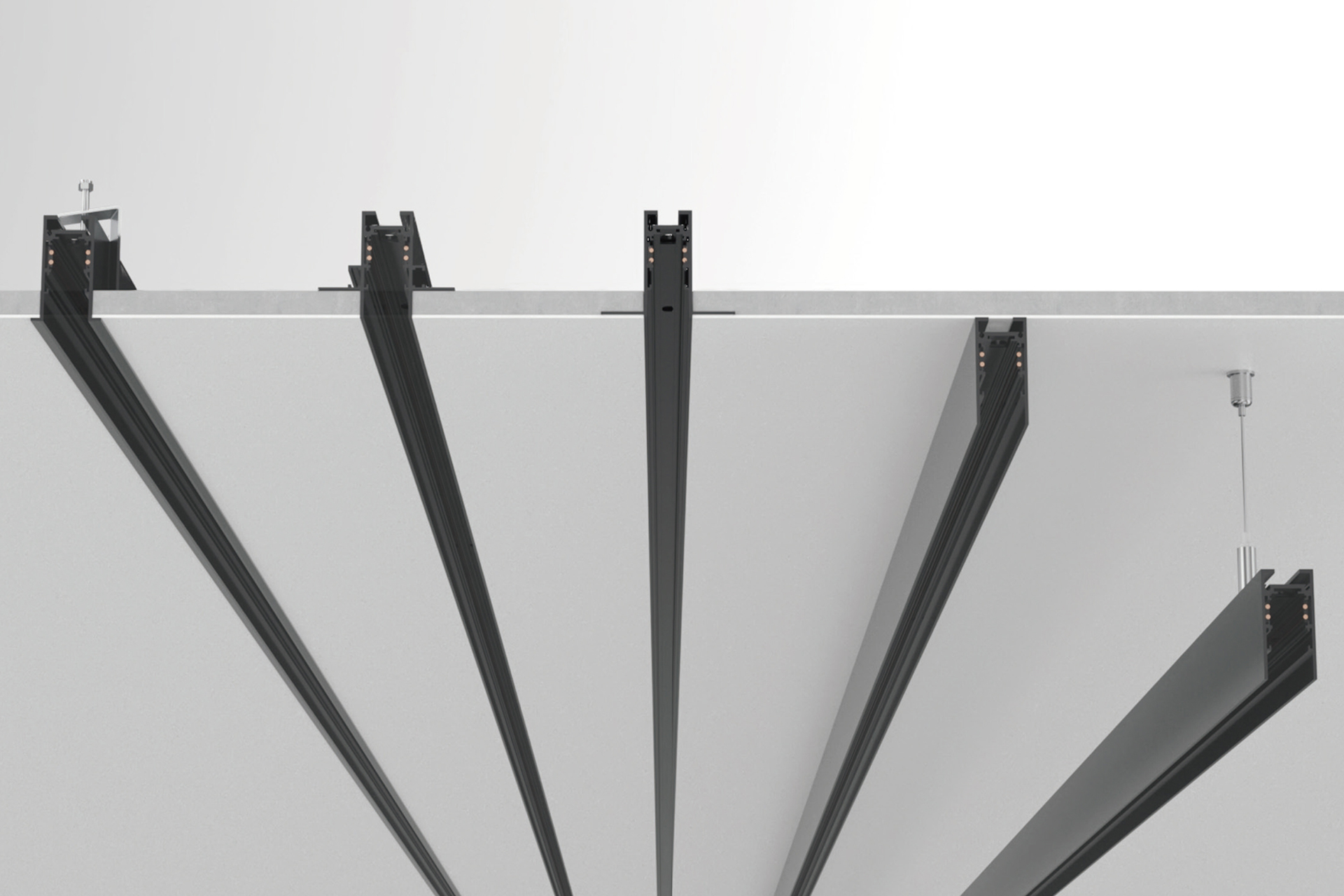

  • 2. Surface, Pendant, Recessed, Trimless optional track version
  • 3. L shape, T shape, cross shape track corner available
  • 4. 26mm track width
  • 5. Cuttable Freely
  • Product Detail

    Product Tags

    MOUNTING

    Mounting location

    48V Track

    Type

    Adjustable Linear grille light

    ELECTRICAL

    Input Voltage

    DC48V

    DRIVER

    Driver brand

    Integrated

    Dimming Option

    No DIM/DALI/0-10V/TUYA/BLUE MESH/Zigbee/Tunable white

    LED

    Chips brand

    Bridgelux COB / Toyonia 2700-6000K

    Power

    4W /10W

    Color Temperature

    2700K/3000K/4000K/ Tunable white

    CRI

    RA>90

    LAMP

    Material

    Die-cast aluminum

    Frame color

    All black/All white

    Inner ring

    Black/White

    Optical Angle

    15°/24°/38°

    Unified glare rating

    UGR<19

    Luminaire lumen efficiency

    80lm/w

    Adjustability

    90°vertical tilt 350° Horizontal rotation

    Ingress Protection

    IP20

    Warranty

    3 years

    Mpower Track Rail DC48V Track System
    4
    3
    4
    5
    MPENN-01
    MPENN-02
    MPENN-03

    1. Q: Where is your company?

    A: We are located in Guangdong Province.

    2. Q: Are you a manufacturer?

    A: Yes, we have a 1500 square meter factory and 5 production lines, Aging equipment, Driver testing, temperature rising recorder, integrating sphere, photometrical machine etc.

    3. Q: How many years warranty?

    A: We offer 3-5 year warranty.

    4. Q: Where is your main market and have compliant certifications?

    A: We export goods globally, but products quality mainly based on European standard, we have TUV CE certification, ERP compliant reports and also we have some products that ETL certified.
